Swivel CSPJ
Fixed CSPK
With Stopper CSPJS
A View(Mounting Hole Dimension)
Type | Main Body | Wheel | Bearing | ||
[M] Material | [S] Surface Treatment | [M]Material (Color) | Swiveling Part | Wheel | |
CSPJ CSPK CSPJS | EN 1.0320 Equiv. (hot coiled) | Trivalent Chromate | Rubber (Gray) | Provided | Provided |
Part Number | — | Wheel Material |
CSPJ125 | — | R |
Main Body | Part Number | Wheel Material | H | B | r | t | E | Allowable Load (N) | Mass (g) | |
Type | D | |||||||||
Swivel | CSPJ | 75 | R(Rubber) | 93 | 25 | 65 | 2.3 | 25 | 600 | 416 |
100 | 130 | 32 | 83 | 3.5 | 30 | 1200 | 982 | |||
125 | 157 | 32 | 101 | 35 | 1600 | 1071 | ||||
150 | 190 | 118 | 40 | 1187 | ||||||
Fixed | CSPK | 75 | 93 | 25 | — | 2.3 | — | 600 | 317 | |
100 | 130 | 32 | 2.5 | 1200 | 786 | |||||
125 | 157 | 32 | 1600 | 802 | ||||||
150 | 190 | 957 | ||||||||
Swivel With Stopper Type | CSPJS | 75 | 93 | 25 | 77 | 2.3 | 25 | 600 | 492 | |
100 | 130 | 32 | 98 | 3.5 | 30 | 1200 | 1147 | |||
125 | 157 | 32 | 114 | 35 | 1600 | 1287 | ||||
150 | 190 | 119 | 40 | 1414 |

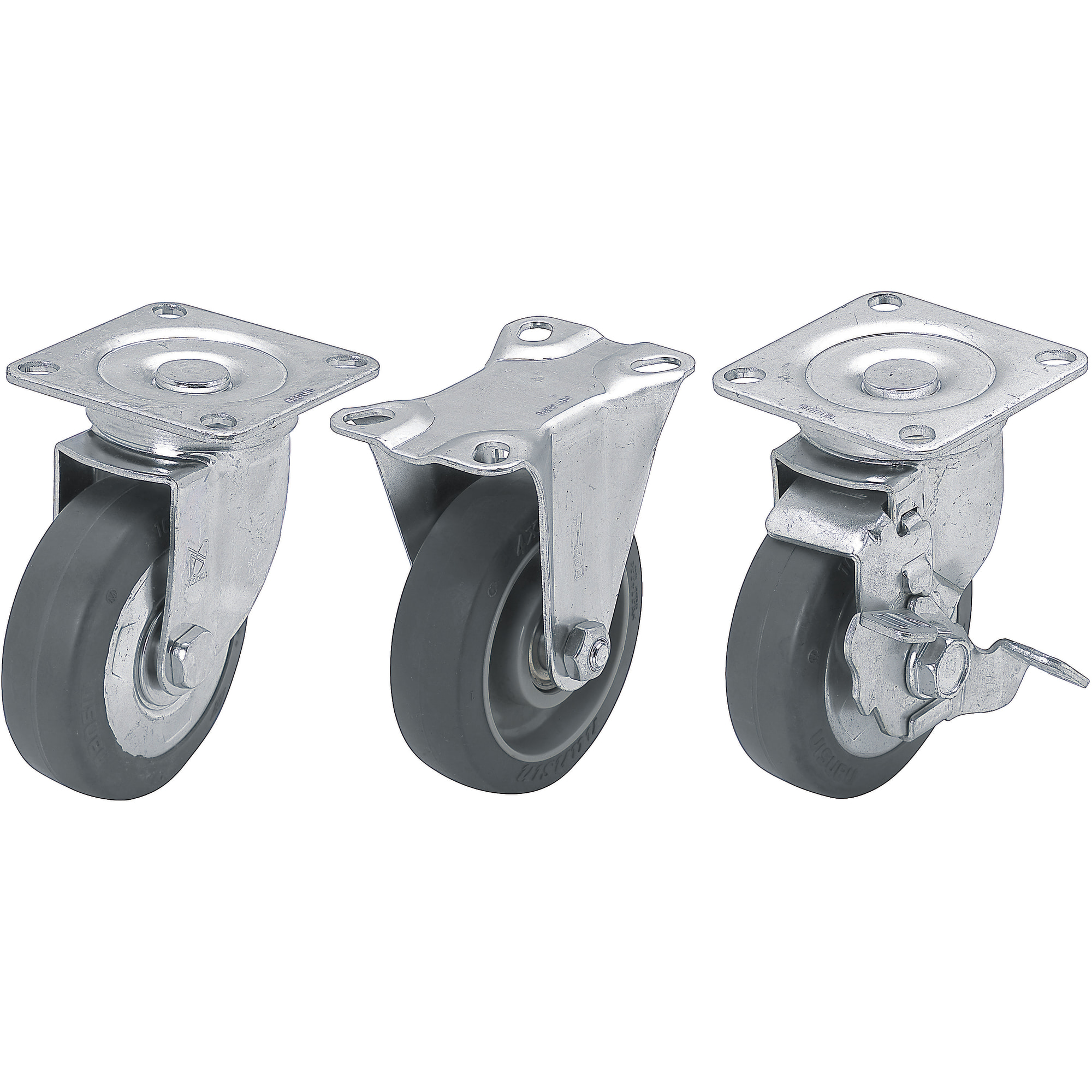

Casters with replacement convenience that allow different wheels to be selected with the same-sized mounting plate
●CSPJ·CSPK·CSPJS
