6 Series (Groove Width 8 mm), for 2-Row Grooves, Bracket With Protrusion (HBLFTDM6-C)
- Cena jednostkowa (bez VAT)
- 5.98 €
- Łącznie (bez VAT)
- 5.98 €Cena z VAT:7.12 €
- Przewidywane dni wysyłki
- 5 dni roboczeReferencyjna data wysyłki: 10.09.2025
| Ilość | 1 - 99 | 100 - 219 | 220+ |
|---|---|---|---|
| Cena jednostkowa (bez VAT) (Cena jednostkowa z VAT) | 5.98 € ( 7.12 € ) | 5.79 € ( 6.89 € ) | 5.79 € ( 6.89 € ) |
| Dni wysyłki | Loading... | Loading... | Loading... |
- * Informacje o dniach wysyłki, kosztach wysyłki i cenach.

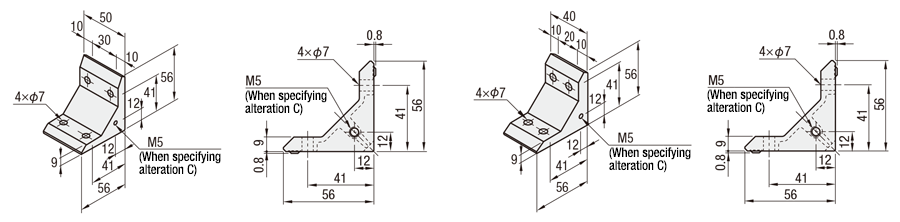

Rysunek konturowy i tabela specyfikacji
HBLFTD6
HBLFTDB6 (Black Anodize)
HBLFTDM6 (Electroless Nickel Plating)
HBLFTD6－50 For 50 Square
[!] Bolts and nuts can also be purchased as a set. See the Alterations below.
| Type | [M] Material | [S] Surface Treatment |
| HBLFTD6 HBLFTD6−50 | EN AC-46100 Equiv. | — |
| HBLFTDB6 | Black Anodize | |
| HBLFTDM6 | Electroless Nickel Plating |
Specification Table
| Part Number |
| HBLFTD6 |
| Part Number | Mass (g) | Applicable Screw, T Nut | Allowable Load (N) | |||
| Type | Screws | Quantity | T Nut | Quantity | ||
| HBLFTD6 | 88 | CBM6−15 | 4 | HNTT6−6 | 4 | 1960 |
| HBLFTDB6* (Black Anodize) | 102 | |||||
| HBLFTDM6 (Electroless Nickel Plating) | ||||||
| HBLFTD6−50 | 86 | |||||
Alterations
| Part Number | — | (C·SET·SST·SEU·SSU·SEP·SSP·SEC) |
| HBLFTD6 | — | SET |
| HBLFTD6 | — | C−SET |
| Alterations | Code | Spec. | Applicable Bracket |
| Mounting Hole Alteration for Cover | C | Adds taps on a bracket for cover mounting. (M5 on Both Sides) (Mounting Screw HCBM)  | HBLFSD6 |
| HBLFSDK6 | |||
| HBLFSD6−50 | |||
| HBLFSDD6 | |||
| HBLFSDW6 | |||
| HBLFSDW6−50 | |||
| HBLFTD6 | |||
| HBLFTDB6 | |||
| HBLFTDM6 | |||
| HBLFTD6−50 | |||
| HBLFUD6 |
| Alterations | Code | Spec. | Applicable Bracket | |||||||||||||||||||||||||||||||||
| Applicable Screws and Nuts Set Nuts Set | SET SST (Stainless Steel) SEU (Pre-Assembly Insertion Spring Nuts) SSU (Pre-Assembly Insertion Spring Nuts Stainless steel) SEP (Post-Assembly Insertion Spring Nuts) SSP (Post-Assembly Spring Nut Stainless steel) SEC (Captured Washer Screws / Nuts) | Applicable screws and nuts for fixing the brackets on extrusions come in a set. Example: When HBLFSD6 is specified
[ ! ] When specifying other than HBLFSD6, check for the applicable screws and nuts respectively | — | |||||||||||||||||||||||||||||||||
| HBLFSD6 | ||||||||||||||||||||||||||||||||||||
| HBLFSDK6 | ||||||||||||||||||||||||||||||||||||
| HBLFSD6−50 | ||||||||||||||||||||||||||||||||||||
| HBLFSDD6 | ||||||||||||||||||||||||||||||||||||
| HBLFSDW6 | ||||||||||||||||||||||||||||||||||||
| HBLFSDW6−50 | ||||||||||||||||||||||||||||||||||||
| HBLFTD6 | ||||||||||||||||||||||||||||||||||||
| HBLFTDB6 | ||||||||||||||||||||||||||||||||||||
| HBLFTDM6 | ||||||||||||||||||||||||||||||||||||
| HBLFTD6−50 | ||||||||||||||||||||||||||||||||||||
| HBLFUD6 | ||||||||||||||||||||||||||||||||||||
[ ! ] Included Screw is not RoHS compliant when -SET, -SEU or -SEP is specified for any bracket other than black anodized ones.
[ ! ] For set combinations, please see "Set of applicable Screws and Nuts Details" below.
■Mounting Hole Alteration for Cover (-C)
M5 tapped holes can be added on both sides.
Alteration part number example: HBLFTD6-C
■Set of applicable Screws and Nuts Details
| Alteration Part Number | Screws | Nut | ||||
|---|---|---|---|---|---|---|
| Part Number | Material | Type | Part Number | Material | Stopper | |
| SET | CBM6-15 | Steel | Pre-Assembly | HNTT6-6 | Steel | Not Provided |
| SST | SCB6-15 | Stainless Steel | Pre-Assembly | HNTTSN6-6 | Stainless Steel | Not Provided |
| SEU | CBM6-15 | Steel | Pre-Assembly | HNTU6-6 | Steel | Provided |
| SSU | SCB6-15 | Stainless Steel | Pre-Assembly | SHNTU6-6 | Stainless Steel | Provided |
| SEP | CBM6-15 | Steel | Post-Assembly | HNTP6-6 | Steel | Provided |
| SSP | SCB6-15 | Stainless Steel | Post-Assembly | SHNTP6-6 | Stainless Steel | Provided |
| SEC | HCBST6-20 | Steel (With Washers) | Pre-Assembly | HNTT6-6 | Steel | Not Provided |
* A set of screws and nuts is included for each mounting hole.
Technical Information
■How to Specify Allowable Load of Bracket
This represents the allowable load per bracket for the extrusion assembly structured by bridging a beam extrusion between two vertical extrusions and then, attaching a bracket just below the bottom face of each end of the beam extrusion.
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.
Similar Products
■6 Series (Slot Width 8 mm) - For 2 Slots, Tabbed Brackets
| Name | Tabbed Brackets (This Product) | Tabbed Brackets | Reversal Tabbed Brackets, 4 Mounting Holes Type | Reversal Tabbed Brackets, 8 Mounting Holes Type | Reversal Tabbed Brackets (Ribbed) |
|---|---|---|---|---|---|
| Image |
|
|
|
|
|
| Protrusion position | With Both Sides Tabs | With Both Sides Tabs | With Both Sides Tabs / With Single Side Tab | With Single Side Tab | With Both Sides Tabs |
| Allowable Load (N) | 1960 | 1960 | 1764 | 2940 | 2940/2964 |
| Number of Squares | For 30, 60 Square/50 Square | For 30, 60 Square | For 30, 60 Square/50 Square | For 30, 60 Square | For 30, 60 Square/50 Square |
