Rails for Switches and Sensors / Aluminum Type / L Dimension Configurable

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 19.
Ilość:

Rysunek konturowy i tabela specyfikacji

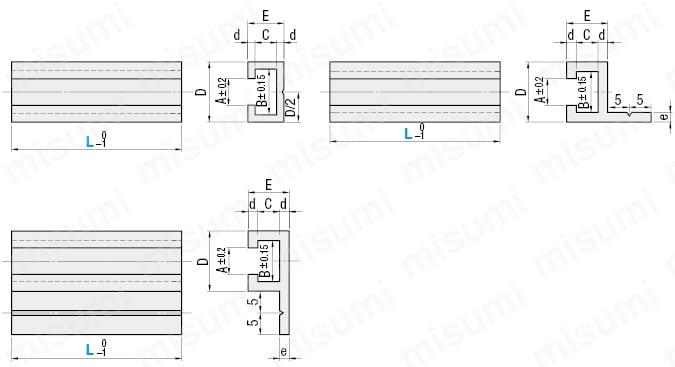

Dimensional Drawing

■Shape A
SENA
SENAB

■Shape B
SENB
SENBB

■Shape C
SENC
SENCB

Rail for switches and sensors, aluminum, L configurable type: related image
[ ! ] No anodizing on the tip.

Product Specifications

Type[M] Material[S] Surface TreatmentPart Number
L Configurable (Length Specifiable)
Shape AShape BShape C
No HoleEN AW−6063−T5 Equiv.Clear AnodizeSENASENBSENC
Black AnodizeSENABSENBBSENCB

Specification Table

Part NumberL
SENB3400
Part NumberL
1 mm Increments
ABCDEde
TypeNo.


(Shape A)

(Shape B)

(Shape C)
(Clear anodize)

   SENA

   SENB

   SENC
(Black anodize)

   SENAB

   SENBB

   SENCB
2*50 to 6002.44.22.57.55.51.52
350 to 12003.45.73.096.0
44.57.24.0118.02.0
55.58.25.5129.53
*No. 2 is available for SENC (shape C, clear anodize) only.

App. Example

Compact nut

Bar nut SQN, SQNS

Rail for switches and sensors, aluminum, L configurable type: related image
·Applicable nuts for rail grooves are compact nuts and bar nuts SQN and SQNS.

Lista numerów części

Liczba pozycji

Rail Type

Surface Treatment

Shape

No. (Compatible Nut Size)

(mm)

Overall Length L

(mm)

RoHS?Minimalna wielkość zamówienia
Rails for Switches and Sensors - Shape A
Clear Anodized Aluminum
Shape A
3
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape A
Clear Anodized Aluminum
Shape A
4
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape A
Clear Anodized Aluminum
Shape A
5
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape A
Black Anodized Aluminum
Shape A
3
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape A
Black Anodized Aluminum
Shape A
4
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape A
Black Anodized Aluminum
Shape A
5
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape B
Clear Anodized Aluminum
Shape B
3
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape B
Clear Anodized Aluminum
Shape B
4
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape B
Clear Anodized Aluminum
Shape B
5
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape B
Black Anodized Aluminum
Shape B
3
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape B
Black Anodized Aluminum
Shape B
4
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape B
Black Anodized Aluminum
Shape B
5
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape C
Clear Anodized Aluminum
Shape C
2
50 ~ 600
10
1 szt.
Rails for Switches and Sensors - Shape C
Clear Anodized Aluminum
Shape C
3
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape C
Clear Anodized Aluminum
Shape C
4
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape C
Clear Anodized Aluminum
Shape C
5
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape C
Black Anodized Aluminum
Shape C
3
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape C
Black Anodized Aluminum
Shape C
4
50 ~ 1200
10
1 szt.
Rails for Switches and Sensors - Shape C
Black Anodized Aluminum
Shape C
5
50 ~ 1200
10
1 szt.
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
Standardowa data wysyłki
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze
-
( - )
6 dni robocze

Szczegółowe informacje

Podstawowe informacje

[Features] Switch/sensor mounting rail whose overall length can be fixed.

Kontury i specyfikacja

Usage example

Rail for Switch/Sensor, Aluminum Type, L Size Specified Type: Related images
