Manifold Rotary Manifolds
Kliknij obraz, aby wyświetlić go w powiększeniu
Przestroga
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Numer części:

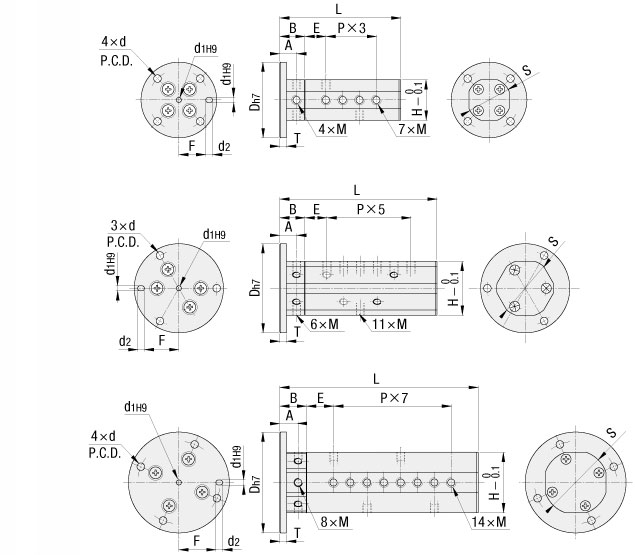

.Rysunek konturowy i tabela specyfikacji
BMRTN
Number of circuits 4
Number of circuits 6
Number of circuits 8
Specification Table
| Part Number | — | Nominal |
| BMRTN4 | — | M5 |
| Part Number | Nominal | Thread Size M | L | Dh7 | T | A | B | E | P | d | P.C.D | d1H9 | d2 | F | H | S | Allowable Rotational Speed (min-1) | Rotation resistance (N⋅m) | Minimum sectional area (mm2) | Accessory Plug (Size x Quantity) | Allowable leak amount * (cm3/min) | Mass (g) | |
| Type | Number of Circuits | ||||||||||||||||||||||
| BMRTN | 4 | M5 | M5 × 0.8 depth 5 | 72 | 45 | 4 | 10 | 15 | 12.5 | 10 | 4.5 | 36 | 3 depth 3 | 4 | 16 | 24 | 26 | 350 | 0.05 | 4.9 | M5 × 3 pcs. | 11 | 110 |
| 1 | Rc1/8 | 94 | 60 | 12.5 | 20.5 | 15.5 | 13.5 | 49 | 22.5 | 35 | 38 | 240 | 0.07 | 12.5 | R1/8 × 3 pcs. | 13 | 280 | ||||||
| 6 | M5 | M5 × 0.8 depth 5 | 93.5 | 53 | 10 | 15 | 13 | 10 | 45 | 20.5 | 32 | 34 | 240 | 0.12 | 4.9 | M5 × 5 pcs. | 13 | 160 | |||||
| 1 | Rc1/8 | 122.5 | 70 | 12.5 | 20.5 | 17.5 | 13.5 | 58 | 27 | 41 | 44 | 170 | 0.17 | 12.5 | R1/8 × 5 pcs. | 15 | 500 | ||||||
| 8 | M5 | M5 × 0.8 depth 5 | 118 | 60 | 11 | 16 | 16 | 10 | 49 | 22.5 | 36 | 38 | 200 | 0.2 | 4.9 | M5 × 6 pcs. | 15 | 380 | |||||
| 1 | Rc1/8 | 156 | 80 | 7 | 16 | 24 | 17.5 | 13.5 | 5.5 | 67 | 4 depth 4 | 5 | 31 | 46 | 48 | 140 | 0.4 | 12.5 | R1/8 × 6 pcs. | 16 | 900 | ||
Lista numerów części
Liczba pozycji
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
643.81 € ( 766.13 € ) | 5 dni robocze |
606.53 € ( 721.77 € ) | 5 dni robocze |
696.69 € ( 829.06 € ) | 5 dni robocze |
668.61 € ( 795.65 € ) | 5 dni robocze |
748.33 € ( 890.51 € ) | 5 dni robocze |
721.25 € ( 858.29 € ) | Towar dostępny w magazynie: 1 dzień roboczyDostępne z opcją wysyłki tego samego dnia |
Szczegółowe informacje
Podstawowe informacje
[Features] This product is designed with a low air leakage volume. -A high performance type.
Przestroga
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Kontury i specyfikacja
Specifications/Overview
■ Features:
·Can be used for plumbing on rotary parts such as index tables.
·Bearing is embedded to achieve high rigidity and rotation with low friction.
·Seal portion has a low friction gasket structure that ensures low air leakage.
■ Precautions for use
Use clean air preconditioned with dryer or filter.
(Do not use synthetic oil containing chemical and organic solvent, or air containing salt and corrosive gas. They may cause damage and malfunction.)
■ Installation method
The upper portion of the fixed side should have a rotation stopping measure designed to fit the equipment, and the floating condition should be ensured.
Excessive load to the rotating side shaft may cause damages and air leakage.
·Can be used for plumbing on rotary parts such as index tables.
·Bearing is embedded to achieve high rigidity and rotation with low friction.
·Seal portion has a low friction gasket structure that ensures low air leakage.
■ Precautions for use
Use clean air preconditioned with dryer or filter.
(Do not use synthetic oil containing chemical and organic solvent, or air containing salt and corrosive gas. They may cause damage and malfunction.)
■ Installation method
The upper portion of the fixed side should have a rotation stopping measure designed to fit the equipment, and the floating condition should be ensured.
Excessive load to the rotating side shaft may cause damages and air leakage.
 | ■ Specifications | |||||||||
| ||||||||||
| ■ Structure diagram | |||||||||||||||||||||||||||||||||||
 |
|
App. Example
