- O.D. D(mm)[4–20/0.5mm jedn.]
- I.D.(mm)[3–90/0.5mm jedn.]
- Thickness/Length(mm)[1–10/0.1mm jedn.]
- Material
- Stainless Steel
- EN 1.4301 Equiv.
- Surface Treatment
- Precision
- Type
- CAD
- 2D
- 3D
- Szacowane dni wysyłki
- Wszystko
- W ciągu 9 dni robocze
Dodatkowa opcje
- Keyway Relief
- Two Flats [WSC][15–99/1]
Spacer washers / treatment selectable (FWSSS-D15-V11-T4)
Przestroga
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Rysunek konturowy i tabela specyfikacji
Back to the Category Washers/Collars (metal)
Technical Drawing - Washers/Collars (metal)
Available dimensions and tolerances can be found under the tab More information.
Basic Properties (e.g., material, hardness, coating, tolerance) - Washers/Collars (metal)
| Part Number | Material | Surface Treatment | |
| Standard Grade | Precision Grade | ||
| FWS | FWAS | EN 1.0038 Equiv. | - |
| FWSSC | FWASC | EN 1.1191 Equiv. | - |
| FWSSB | FWASB | Black Oxide | |
| FWSSM | FWASM | Electroless Nickel Plating | |
| FWSSR | FWASR | LTBC Plating | |
| FWSSA | FWASA | Aluminum Alloy 2000 series | Clear Anodize |
| FWSSAB | - | Black Anodize | |
| FWSBB | - | Brass (JIS EN CW614N Equiv.) | - |
| FWSSS | FWASS | EN 1.4301 Equiv. | - |
| FWSSSR | FWASSR | LTBC Plating | |
| FWSUS | FWASU | EN 1.4401 Equiv. | - |
[ ! ]Hardened Type Here
[ ! ]The inner diameter of the LTBC Plating may have a thin deposit thickness in places or be partially untreated.
[ ! ]The inner diameter of the LTBC Plating may have a thin deposit thickness in places or be partially untreated.
Further specifications can be found under the tab More information.
Composition of a Product Code - Washers/Collars (metal)
| Part Number | - | D | - | V | - | T |
| FWSSC | - | D71 | - | V50.0 | - | T10.0 |
| Part Number | - | D | - | V | - | T |
| FWASB | - | D15.5 | - | V5.5 | - | T2.6 |
Alterations - Washers/Collars (metal)
Szczegółowe informacje
Podstawowe informacje
similar DIN 988
Przestroga
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Kontury i specyfikacja
Back to the Category Washers/Collars (metal)
Technical Drawing - Washers/Collars (metal)

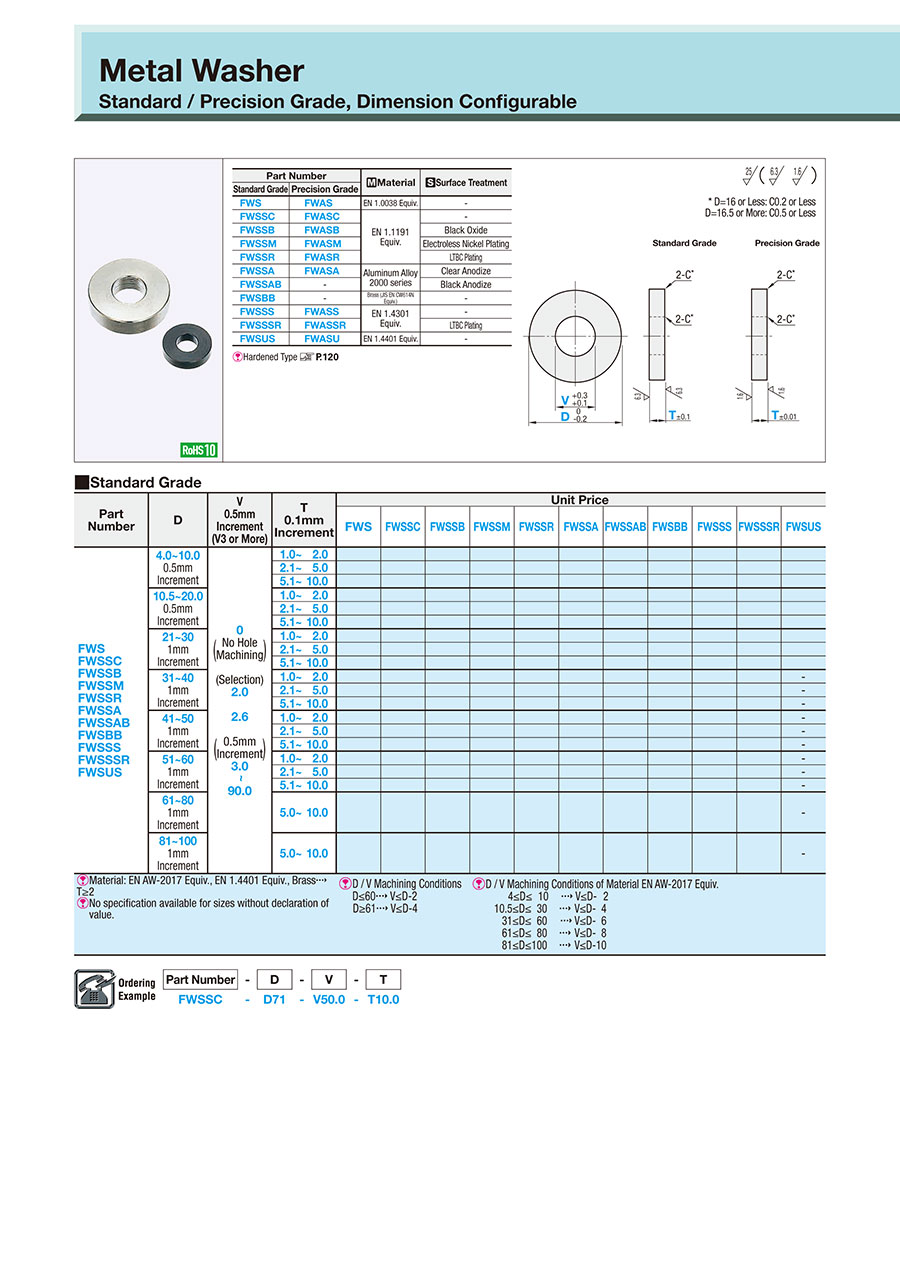

Overview of the various designs as PDF
Specification Tables - Washers/Collars (metal)
■Standard Grade
| Part Number | D | V 0.5mm Increment (V3 or More) | T 0.1mm Increment | Unit Price | ||||||||||
| FWS | FWSSC | FWSSB | FWSSM | FWSSR | FWSSA | FWSSAB | FWSBB | FWSSS | FWSSSR | FWSUS | ||||
| FWS FWSSC FWSSB FWSSM FWSSR FWSSA FWSSAB FWSBB FWSSS FWSSSR FWSUS | 4.0~10.0 0.5mm Increment | 0 (No Hole Machining) (Selection) 2.0 2.6 (0.5mm Increment) 3.0 ~ 90.0 | 1.0~ 2.0 | |||||||||||
| 2.1~ 5.0 | ||||||||||||||
| 5.1~ 10.0 | ||||||||||||||
| 10.5~20.0 0.5mm Increment | 1.0~ 2.0 | |||||||||||||
| 2.1~ 5.0 | ||||||||||||||
| 5.1~ 10.0 | ||||||||||||||
| 21~30 1mm Increment | 1.0~ 2.0 | |||||||||||||
| 2.1~ 5.0 | ||||||||||||||
| 5.1~ 10.0 | ||||||||||||||
| 31~40 1mm Increment | 1.0~ 2.0 | - | ||||||||||||
| 2.1~ 5.0 | - | |||||||||||||
| 5.1~ 10.0 | - | |||||||||||||
| 41~50 1mm Increment | 1.0~ 2.0 | - | ||||||||||||
| 2.1~ 5.0 | - | |||||||||||||
| 5.1~ 10.0 | - | |||||||||||||
| 51~60 1mm Increment | 1.0~ 2.0 | - | ||||||||||||
| 2.1~ 5.0 | - | |||||||||||||
| 5.1~ 10.0 | - | |||||||||||||
| 61~80 1mm Increment | 5.0~ 10.0 | - | ||||||||||||
| 81~100 1mm Increment | 5.0~ 10.0 | - | ||||||||||||
| Material: EN AW-2017 Equiv., EN 1.4401 Equiv., Brass T≥2 No specification available for sizes without declaration of value. | D / V Machining Conditions D≤60 V≤D-2 D≥61 V≤D-4 | D / V Machining Conditions of Material EN AW-2017 Equiv. 4≤D≤ 10 V≤D- 2 10.5≤D≤ 30 V≤D- 4 31≤D≤ 60 V≤D- 6 61≤D≤ 80 V≤D- 8 81≤D≤ 100 V≤D- 10 | ||||||||||||
■Precision Grade
| Part Number | D | V 0.5mm Increment (V3 or More) | T 0.1mm Increment | Unit Price | ||||||||
| FWAS | FWASC | FWASB | FWASM | FWASR | FWASA | FWASS | FWASSR | FWASU | ||||
| FWAS FWASC FWASB FWASM FWASR FWASA FWASS FWASSR FWASU | 4.0~10.0 0.5mm Increment | 0 (No Hole Machining) (Selection) 2.0 2.6 (0.5mm Increment) 3.0 ~ 90.0 | 1.0~ 2.0 | |||||||||
| 2.1~ 5.0 | ||||||||||||
| 5.1~ 10.0 | ||||||||||||
| 10.5~20.0 0.5mm Increment | 1.0~ 2.0 | |||||||||||
| 2.1~ 5.0 | ||||||||||||
| 5.1~ 10.0 | ||||||||||||
| 21~30 1mm Increment | 1.0~ 2.0 | |||||||||||
| 2.1~ 5.0 | ||||||||||||
| 5.1~ 10.0 | ||||||||||||
| 31~40 1mm Increment | 1.0~ 2.0 | - | ||||||||||
| 2.1~ 5.0 | - | |||||||||||
| 5.1~ 10.0 | - | |||||||||||
| 41~50 1mm Increment | 1.0~ 2.0 | - | ||||||||||
| 2.1~ 5.0 | - | |||||||||||
| 5.1~ 10.0 | - | |||||||||||
| 51~60 1mm Increment | 1.0~ 2.0 | - | ||||||||||
| 2.1~ 5.0 | - | |||||||||||
| 5.1~ 10.0 | - | |||||||||||
| 61~80 1mm Increment | 5.0~ 10.0 | - | - | - | - | |||||||
| 81~100 1mm Increment | 5.0~ 10.0 | - | - | - | - | |||||||
| Material: EN AW-2017 Equiv., EN 1.4401 Equiv. T≥2 No specification available for sizes without declaration of value. | D / V Machining Conditions D≤60 V≤D-2 D≥61 V≤D-4 | D / V Machining Conditions of Material EN AW-2017 Equiv. 4≤D≤ 10 V≤D- 2 10.5≤D≤ 30 V≤D- 4 31≤D≤ 60 V≤D- 6 61≤D≤ 80 V≤D- 8 81≤D≤ 100 V≤D- 10 | ||||||||||
Alterations - Washers/Collars (metal)
