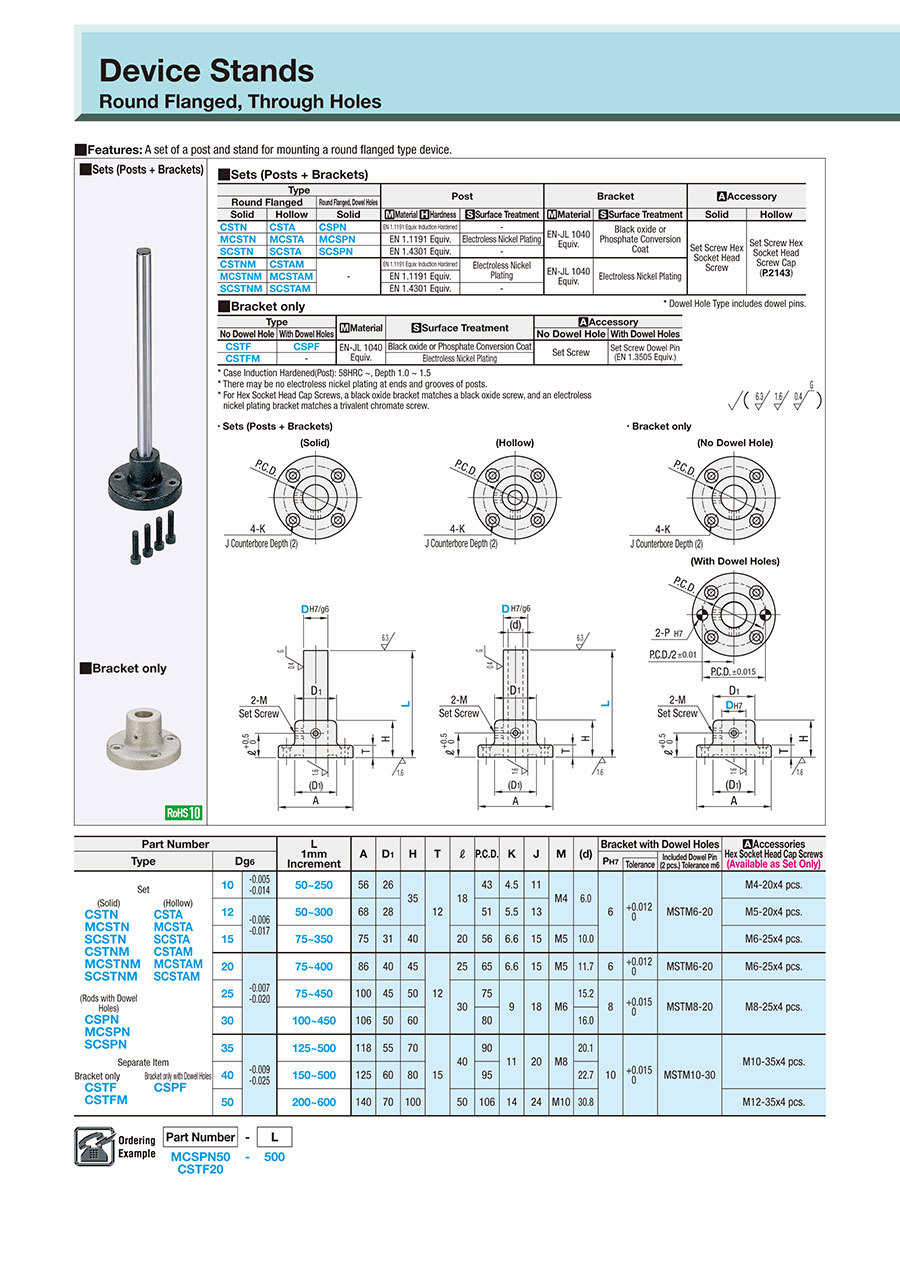

Device Stands - Round Flanged(Lista numerów części: str. 2)
Przestroga
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Numer części:
.Rysunek konturowy i tabela specyfikacji
■Sets (Posts + Brackets)
| Type | Post | Bracket | Accessory | |||||
| Round Flanged | Round Flanged, Dowel Holes | |||||||
| Solid | Hollow | Solid | Material Hardness | Surface Treatment | Material | Surface Treatment | Solid | Hollow |
| CSTN | CSTA | CSPN | EN 1.1191 Equiv. Induction Hardened | - | EN-JL 1040 Equiv. | Black oxide or Phosphate Conversion Coat | Set Screw Hex Socket Head Screw | Set Screw Hex Socket Head Screw Cap (P.2143) |
| MCSTN | MCSTA | MCSPN | EN 1.1191 Equiv. | Electroless Nickel Plating | ||||
| SCSTN | SCSTA | SCSPN | EN 1.4301 Equiv. | - | ||||
| CSTNM | CSTAM | - | EN 1.1191 Equiv. Induction Hardened | Electroless Nickel Plating | EN-JL 1040 Equiv. | Electroless Nickel Plating | ||
| MCSTNM | MCSTAM | EN 1.1191 Equiv. | ||||||
| SCSTNM | SCSTAM | EN 1.4301 Equiv. | - | |||||
■Bracket only
| Type | Material | Surface Treatment | Accessory | ||
| No Dowel Hole | With Dowel Holes | No Dowel Hole | With Dowel Holes | ||
| CSTF | CSPF | EN-JL 1040 Equiv. | Black oxide or Phosphate Conversion Coat | Set Screw | Set Screw Dowel Pin (EN 1.3505 Equiv.) |
| CSTFM | - | Electroless Nickel Plating | |||
* There may be no electroless nickel plating at ends and grooves of posts.
* For Hex Socket Head Cap Screws, a black oxide bracket matches a black oxide screw, and an electroless nickel plating bracket matches a trivalent chromate screw.
Specifications
| Part Number | - | L |
| MCSPN50 CSTF20 | - | 500 |
| Part Number | L 1mm Increment | A | D1 | H | T | ℓ | P.C.D | K | J | M | (d) | Bracket with Dowel Holes | [ A ]Accessories Hex Socket Head Cap Screws (Available as Set Only) | ||||||
| Type | D | Postsg6 | BracketsH7 | PH7 | Included Dowel Pin (2 pcs.) Tolerance m6 | ||||||||||||||
| Tolerance | |||||||||||||||||||
| Set | 10 | -0.005 -0.014 | +0.015 0 | 50~250 | 56 | 26 | 35 | 12 | 18 | 43 | 4.5 | 11 | M4 | 6 | 6 | +0.012 0 | MSTM6-20 | M4-20x4 pcs. | |
| (Solid) CSTN MCSTN SCSTN CSTNM MCSTNM SCSTNM | (Hollow) CSTA MCSTA SCSTA CSTAM MCSTAM SCSTAM | 12 | -0.006 -0.017 | +0.018 0 | 50~300 | 68 | 28 | 35 | 12 | 18 | 51 | 5.5 | 13 | M4 | 6 | 6 | +0.012 0 | MSTM6-20 | M5-20x4 pcs. |
| 15 | -0.006 -0.017 | +0.018 0 | 75~350 | 75 | 31 | 40 | 12 | 20 | 56 | 6.6 | 15 | M5 | 10 | 6 | +0.012 0 | MSTM6-20 | M6-25x4 pcs. | ||
| 20 | -0.007 -0.020 | +0.021 0 | 75~400 | 86 | 40 | 45 | 12 | 25 | 65 | 6.6 | 15 | M5 | 11.7 | 6 | +0.012 0 | MSTM6-20 | M6-25x4 pcs. | ||
| (Rods with Dowel Holes) CSPN MCSPN SCSPN | 25 | -0.007 -0.020 | +0.021 0 | 75~450 | 100 | 45 | 50 | 12 | 30 | 75 | 9 | 18 | M6 | 15.2 | 8 | +0.015 0 | MSTM8-20 | M8-25x4 pcs. | |
| 30 | -0.007 -0.020 | +0.021 0 | 100~450 | 106 | 50 | 60 | 12 | 30 | 80 | 9 | 18 | M6 | 16 | 8 | +0.015 0 | MSTM8-20 | M8-25x4 pcs. | ||
| Separate Item | 35 | -0.009 -0.025 | +0.025 0 | 125~500 | 118 | 55 | 70 | 15 | 40 | 90 | 11 | 20 | M8 | 20.1 | 10 | +0.015 0 | MSTM10-30 | M10-35x4 pcs. | |
| Bracket only CSTF CSTFM | Bracket only with Dowel Holes CSPF | 40 | -0.009 -0.025 | +0.025 0 | 150~500 | 125 | 60 | 80 | 15 | 40 | 95 | 11 | 20 | M8 | 22.7 | 10 | +0.015 0 | MSTM10-30 | M10-35x4 pcs. |
| 50 | -0.009 -0.025 | +0.025 0 | 200~600 | 140 | 70 | 100 | 15 | 50 | 106 | 14 | 24 | M10 | 30.8 | 10 | +0.015 0 | MSTM10-30 | M12-35x4 pcs. | ||
