Cantilever Shafts / stepped / double-sided female thread / flat spanner

KatalogS. 1-897

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 80.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje

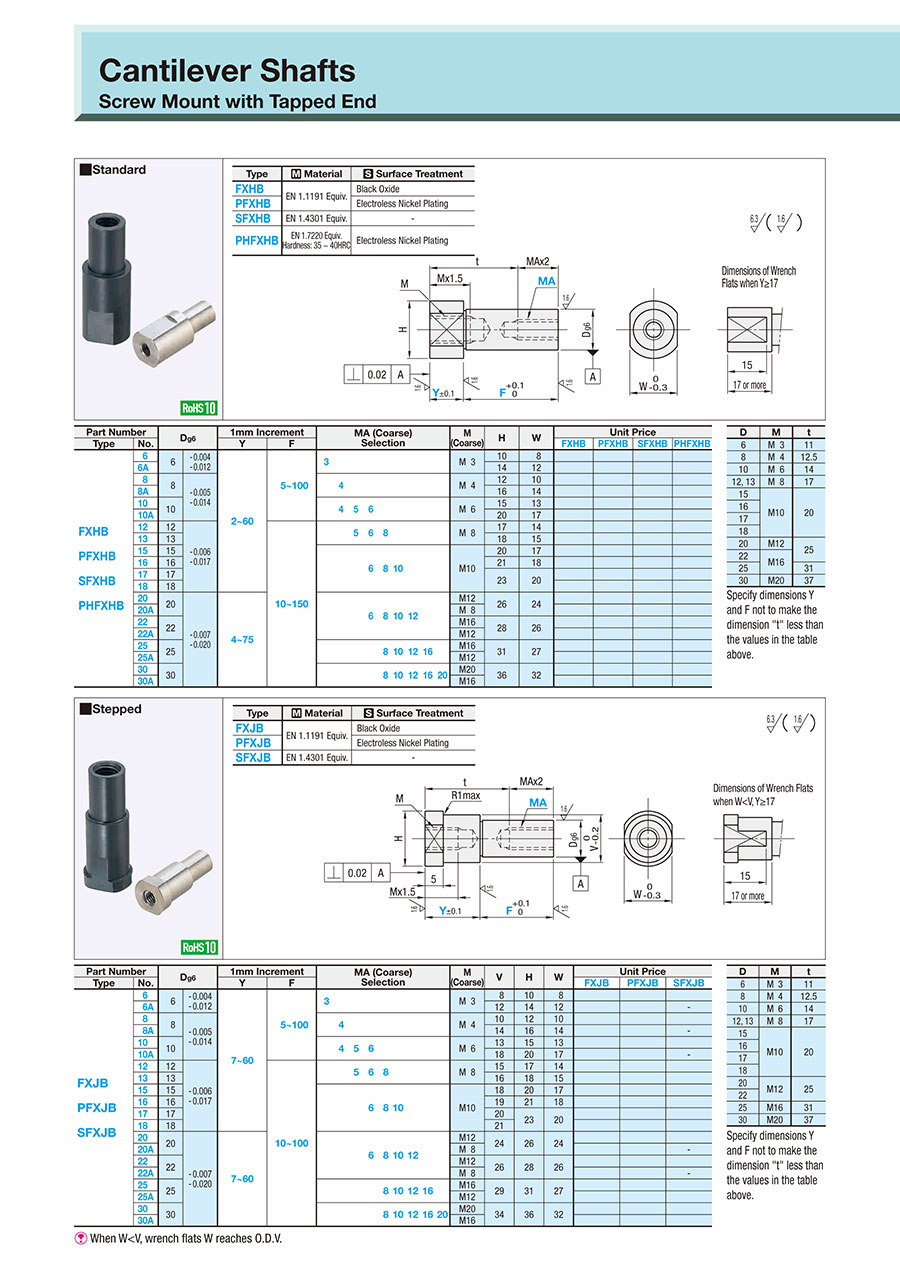

Katalog

Rysunek konturowy i tabela specyfikacji

Cantilever Shaft - Screw Mount, Tapped End, Standard Dimensional Drawing

Dimensions of Wrench Flats when Y ≥ 17

Type	[M] Material	[S] Surface treatment
FXHB	EN 1.1191 Equiv.	Black Oxide
PFXHB	EN 1.1191 Equiv.	Electroless Nickel Plating
SFXHB	EN 1.4301 Equiv.	—
PHFXHB	EN 1.7220 Equiv. Hardness 35 to 40 HRC	Electroless Nickel Plating

Specification Table

Part Number	—	Y	—	F	—	MA
FXHB20 FXJB12 SF−PFXJB17	— — —	17 24 30	— — —	F25 F18 F50	— — —	MA10 MA6 MA8

Part Number		D_g6		1 mm Increments		MA (Coarse) Selection									M (Coarse)	H	W
Type	No.			Y	F
FXHB PFXHB SFXHB PHFXHB	6	6	− 0.004 − 0.012	2 to 60	5 to 100	3									M 3	10	8
	6 A															14	12
	8	8	− 0.005 − 0.014				4								M 4	12	10
	8 A															16	14
	10	10					4	5	6						M 6	15	13
	10 A															20	17
	12	12	− 0.006 − 0.017		10 to 150			5	6	8					M 8	17	14
	13	13														18	15
	15	15							6	8	10				M10	20	17
	16	16														21	18
	17	17														23	20
	18	18
	20	20	− 0.007 − 0.020	4 to 75					6	8	10	12			M12	26	24
	20 A														M 8
	22	22													M16	28	26
	22 A														M12
	25	25								8	10	12	16		M16	31	27
	25 A														M12
	30	30								8	10	12	16	20	M20	36	32
	30 A														M16

D	M	t
6	M 3	11
8	M 4	12.5
10	M 6	14
12·13	M 8	17
15	M10	20
16
17
18
20	M12	25
22	M16	25
25	M16	31
30	M20	37

Specify dimensions Y and F not to make the dimension "t" less than the values in the table above.

Alterations

Part Number	—	Y	—	F	—	MA	—	(YKC·WSC·APC)
FXHB25	—	50	—	F32	—	MA10	—	YKC − APC

Alterations

Y Dimension Tolerance

Four Wrench Flats

Adds a Pilot

Cantilever Shaft - Screw Mount, Tapped End, Standard Alteration 1

Cantilever Shaft - Screw Mount, Tapped End, Standard Alteration 2

Cantilever Shaft - Screw Mount, Tapped End, Standard Alteration 3

Code

YKC

WSC

APC

Spec.

Changes Y dimension tolerance to ± 0.05.
[!] Applicable to all types
Ordering Code YKC

Changes from two wrench flats to four wrench flats.
[!] Applicable to Standard and Stepped Types
Ordering Code WSC

Adds a pilot to the shaft seat.
[!] Applicable to all types
Ordering Code APC

D	M	APCg6
6	M 3	6
8	M 4	8
10	M 6	10
12	M 8	12
13	M 8	13
15	M10	15
16		16
17		17
18		18

D	M	APCg6
20	M12	20
22	M12	22
25	M16	25
25 A	M12	25
30	M20	30
30 A	M16	30

Lista numerów części

Liczba pozycji

Dalej

Numer części

FXHB6-[2-60/1]-F[5-100/1]-MA3

FXHB6A-[2-60/1]-F[5-100/1]-MA3

FXHB8-[2-60/1]-F[5-100/1]-MA4

FXHB8A-[2-60/1]-F[5-100/1]-MA4

FXHB10-[2-60/1]-F[5-100/1]-MA[4,5,6]

FXHB10A-[2-60/1]-F[5-100/1]-MA[4,5,6]

FXHB12-[2-60/1]-F[10-150/1]-MA[5,6,8]

FXHB13-[2-60/1]-F[10-150/1]-MA[5,6,8]

FXHB15-[2-60/1]-F[10-150/1]-MA[6,8,10]

FXHB16-[2-60/1]-F[10-150/1]-MA[6,8,10]

FXHB17-[2-60/1]-F[10-150/1]-MA[6,8,10]

FXHB18-[2-60/1]-F[10-150/1]-MA[6,8,10]

FXHB20-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

FXHB20A-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

FXHB22-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

FXHB22A-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

FXHB25-[4-75/1]-F[10-150/1]-MA[8,10,12,16]

FXHB25A-[4-75/1]-F[10-150/1]-MA[8,10,12,16]

FXHB30-[4-75/1]-F[10-150/1]-MA[8,10,12,16,20]

FXHB30A-[4-75/1]-F[10-150/1]-MA[8,10,12,16,20]

PFXHB6-[2-60/1]-F[5-100/1]-MA3

PFXHB6A-[2-60/1]-F[5-100/1]-MA3

PFXHB8-[2-60/1]-F[5-100/1]-MA4

PFXHB8A-[2-60/1]-F[5-100/1]-MA4

PFXHB10-[2-60/1]-F[5-100/1]-MA[4,5,6]

PFXHB10A-[2-60/1]-F[5-100/1]-MA[4,5,6]

PFXHB12-[2-60/1]-F[10-150/1]-MA[5,6,8]

PFXHB13-[2-60/1]-F[10-150/1]-MA[5,6,8]

PFXHB15-[2-60/1]-F[10-150/1]-MA[6,8,10]

PFXHB16-[2-60/1]-F[10-150/1]-MA[6,8,10]

PFXHB17-[2-60/1]-F[10-150/1]-MA[6,8,10]

PFXHB18-[2-60/1]-F[10-150/1]-MA[6,8,10]

PFXHB20-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PFXHB20A-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PFXHB22-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PFXHB22A-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PFXHB25-[4-75/1]-F[10-150/1]-MA[8,10,12,16]

PFXHB25A-[4-75/1]-F[10-150/1]-MA[8,10,12,16]

PFXHB30-[4-75/1]-F[10-150/1]-MA[8,10,12,16,20]

PFXHB30A-[4-75/1]-F[10-150/1]-MA[8,10,12,16,20]

PHFXHB6-[2-60/1]-F[5-100/1]-MA3

PHFXHB6A-[2-60/1]-F[5-100/1]-MA3

PHFXHB8-[2-60/1]-F[5-100/1]-MA4

PHFXHB8A-[2-60/1]-F[5-100/1]-MA4

PHFXHB10-[2-60/1]-F[5-100/1]-MA[4,5,6]

PHFXHB10A-[2-60/1]-F[5-100/1]-MA[4,5,6]

PHFXHB12-[2-60/1]-F[10-150/1]-MA[5,6,8]

PHFXHB13-[2-60/1]-F[10-150/1]-MA[5,6,8]

PHFXHB15-[2-60/1]-F[10-150/1]-MA[6,8,10]

PHFXHB16-[2-60/1]-F[10-150/1]-MA[6,8,10]

PHFXHB17-[2-60/1]-F[10-150/1]-MA[6,8,10]

PHFXHB18-[2-60/1]-F[10-150/1]-MA[6,8,10]

PHFXHB20-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PHFXHB20A-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PHFXHB22-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PHFXHB22A-[4-75/1]-F[10-150/1]-MA[6,8,10,12]

PHFXHB25-[4-75/1]-F[10-150/1]-MA[8,10,12,16]

PHFXHB25A-[4-75/1]-F[10-150/1]-MA[8,10,12,16]

PHFXHB30-[4-75/1]-F[10-150/1]-MA[8,10,12,16,20]

PHFXHB30A-[4-75/1]-F[10-150/1]-MA[8,10,12,16,20]

Shaft Diameter

(mm)

Material

Surface Treatment

Hardness

Material

M (Coarse)

H Dimension

(mm)

Thread Dia. Selection [MA]

(mm)

RoHS?

Minimalna wielkość zamówienia

6	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	3	10	5 - 100	3	2 - 60	10	1 szt.
6	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	3	14	5 - 100	3	2 - 60	10	1 szt.
8	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	4	12	5 - 100	4	2 - 60	10	1 szt.
8	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	4	16	5 - 100	4	2 - 60	10	1 szt.
10	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	6	15	5 - 100	4 - 6	2 - 60	10	1 szt.
10	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	6	20	5 - 100	4 - 6	2 - 60	10	1 szt.
12	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	8	17	10 - 150	5 - 8	2 - 60	10	1 szt.
13	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	8	18	10 - 150	5 - 8	2 - 60	10	1 szt.
15	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	20	10 - 150	6 - 10	2 - 60	10	1 szt.
16	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	21	10 - 150	6 - 10	2 - 60	10	1 szt.
17	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	23	10 - 150	6 - 10	2 - 60	10	1 szt.
18	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	23	10 - 150	6 - 10	2 - 60	10	1 szt.
20	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	12	26	10 - 150	6 - 12	4 - 75	10	1 szt.
20	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	8	26	10 - 150	6 - 12	4 - 75	10	1 szt.
22	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	16	28	10 - 150	6 - 12	4 - 75	10	1 szt.
22	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	12	28	10 - 150	6 - 12	4 - 75	10	1 szt.
25	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	16	31	10 - 150	8 - 16	4 - 75	10	1 szt.
25	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	12	31	10 - 150	8 - 16	4 - 75	10	1 szt.
30	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	20	36	10 - 150	8 - 20	4 - 75	10	1 szt.
30	Steel	Black Oxide	Hardness Not Spec-designed	EN 1.1191 Equiv.	16	36	10 - 150	8 - 20	4 - 75	10	1 szt.
6	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	3	10	5 - 100	3	2 - 60	10	1 szt.
6	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	3	14	5 - 100	3	2 - 60	10	1 szt.
8	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	4	12	5 - 100	4	2 - 60	10	1 szt.
8	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	4	16	5 - 100	4	2 - 60	10	1 szt.
10	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	6	15	5 - 100	4 - 6	2 - 60	10	1 szt.
10	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	6	20	5 - 100	4 - 6	2 - 60	10	1 szt.
12	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	8	17	10 - 150	5 - 8	2 - 60	10	1 szt.
13	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	8	18	10 - 150	5 - 8	2 - 60	10	1 szt.
15	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	20	10 - 150	6 - 10	2 - 60	10	1 szt.
16	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	21	10 - 150	6 - 10	2 - 60	10	1 szt.
17	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	23	10 - 150	6 - 10	2 - 60	10	1 szt.
18	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	10	23	10 - 150	6 - 10	2 - 60	10	1 szt.
20	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	12	26	10 - 150	6 - 12	4 - 75	10	1 szt.
20	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	8	26	10 - 150	6 - 12	4 - 75	10	1 szt.
22	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	16	28	10 - 150	6 - 12	4 - 75	10	1 szt.
22	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	12	28	10 - 150	6 - 12	4 - 75	10	1 szt.
25	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	16	31	10 - 150	8 - 16	4 - 75	10	1 szt.
25	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	12	31	10 - 150	8 - 16	4 - 75	10	1 szt.
30	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	20	36	10 - 150	8 - 20	4 - 75	10	1 szt.
30	Steel	Electroless Nickel Plating	Hardness Not Spec-designed	EN 1.1191 Equiv.	16	36	10 - 150	8 - 20	4 - 75	10	1 szt.
6	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	3	10	5 - 100	3	2 - 60	10	1 szt.
6	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	3	14	5 - 100	3	2 - 60	10	1 szt.
8	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	4	12	5 - 100	4	2 - 60	10	1 szt.
8	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	4	16	5 - 100	4	2 - 60	10	1 szt.
10	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	6	15	5 - 100	4 - 6	2 - 60	10	1 szt.
10	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	6	20	5 - 100	4 - 6	2 - 60	10	1 szt.
12	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	8	17	10 - 150	5 - 8	2 - 60	10	1 szt.
13	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	8	18	10 - 150	5 - 8	2 - 60	10	1 szt.
15	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	10	20	10 - 150	6 - 10	2 - 60	10	1 szt.
16	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	10	21	10 - 150	6 - 10	2 - 60	10	1 szt.
17	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	10	23	10 - 150	6 - 10	2 - 60	10	1 szt.
18	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	10	23	10 - 150	6 - 10	2 - 60	10	1 szt.
20	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	12	26	10 - 150	6 - 12	4 - 75	10	1 szt.
20	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	8	28	10 - 150	6 - 12	4 - 75	10	1 szt.
22	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	16	28	10 - 150	6 - 12	4 - 75	10	1 szt.
22	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	12	26	10 - 150	6 - 12	4 - 75	10	1 szt.
25	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	16	31	10 - 150	8 - 16	4 - 75	10	1 szt.
25	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	12	31	10 - 150	8 - 16	4 - 75	10	1 szt.
30	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	20	36	10 - 150	8 - 20	4 - 75	10	1 szt.
30	Steel	Electroless Nickel Plating	Hardness Spec-designed	EN 1.7220 Equiv.	16	36	10 - 150	8 - 20	4 - 75	10	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	4 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	9 dni robocze
- ( - )	7 dni robocze
- ( - )	9 dni robocze
- ( - )	7 dni robocze
- ( - )	9 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze

Dalej

Szczegółowe informacje

Kontury i specyfikacja

Kontury i specyfikacja

App. Example

General Information - Cantilever Shafts

Cantilever bins with retaining ring groove - cantilever pin with external thread - cantilever pin with thread - cantilever pin with collar - cantilever pin with shoulder - cantilever pin with female thread - cantilever pin with flange - cantilever pin with flange and collar

Selection details of cantilever shafts/cantilever bolts

- Material: stainless steel, steel, tempered steel

- Coatings: untreated, burnished, nickel-plated

- Fastening: retaining ring, internal thread, external thread, centring collar with internal thread

- ISO tolerance: g6

- Thread: M3 to M20

- Straightness: up to 0.02 mm

- Roundness: up to 0.02 mm

- Shaft diameter: 3 to 50 mm

-Length: 3 to 150 mm

Description/Basics

They are basically used to support rotary rolling bearings. The support position can be precisely determined by its configurability. The different mounting variants offer a compact and space-saving option for many applications, e.g., to accommodate ball bearings.
Cantilever shafts with collar or shoulder are well suited to determine a support position. The collar serves as a contact surface for the bearing inner wheel. Since the collar of the cantilever shaft can be configured, individual adaptation is simple. The variant [YKC] offers the option of a particularly precise axle bolt with collar, with a length tolerance of +/- 0.05 mm. Due to this property, an additional washers can be omitted with this cantilever shaft.
The cantilever shafts are also available with double collars or double offset. These are suitable for idler pulleys with a small diameter, since the reduced additional shoulder can prevent grinding of the idler pulley.
Cantilever shafts with retaining ring groove (groove) are the most commonly used bearing bolts, because the retaining rings allows for easy assembly and disassembly. The cantilever shafts including the retaining ring can be delivered with the [SET] option. We also offer threaded cantilever shafts that can be selected with external threads or internal threads.
As a special form, our product range offers cantilever shafts with flanges. Due to the large contact surface, higher forces can be absorbed and distributed more evenly compared to conventional cantilever shafts. If you want to attach ball bearings that also have to withstand axial forces, for example, the cantilever shaft with flange offers a good solution. Due to its versatility, the cantilever shaft with flange can be used for a wide variety of design solutions.
Our product range includes various drives for assembly. From the typical hexagon to spanner flat, to additional cross holes with threads that can be used for example for a tension application for clamping devices.

The field of application of cantilever shafts in mechanical engineering is fundamentally very large. They are utilised in synchronous drives, chain transmission or in various tasks in device construction
Bearing pins can be used in combination with ball bearings or plain bearing bushings. Among other things, you can select roller idlers (with rolling bearings), idler pulleys or timing pulleys. As an alternative for limited installation space, we offer cam rollers, which come assembled and ready to install consisting of cantilever shafts and rolling bearings.
Bearing pins are also often used in conjunction with links to ensure different movement sequences.
For high loads, we offer the cantilever shafts made of heat-treated steel, which are produced to be wear-resistant and durable with a hardness of up to 40HRC.

Our product range also offers suitable screws and nuts for fastening cantilever shafts.

Application Examples - Cantilever Shafts

Application example - cantilever pin with idler pulley - cantilever pin with female thread - shaft for idler pulley - bolt for idler pulley - cantilever bolt with thread

Application example: deflection roller
(1) Cantilever shaft, (2) Idler pulley, (3) Spacer washer, (4) Mounting angle, (5) Screw, (6) Mounting plate

Application example - cantilever pin with chain idler - cantilever pin with centring collar - cantilever pin double offset - cantilever pin with double collar - cantilever pin with female thread

Application example: chain idlers
(1) Cantilever shafts, (2) Chain idlers, (3) Spacer washer, (4) Screw

Application example - cantilever pin with clamping device - cantilever pin for clamping device - cantilever pin with cross hole and thread - cantilever pin with male thread - cantilever pin with thread - roller tensioner with adjusting screw

Application example: idler pulley
(1) Cantilever shaft, (2) Locknut, (3) Washer, (4) Idler pulley, (5) Threaded stopper block, (6) Adjusting screw

Application example - cantilever pin with plain bearing bushing - cantilever pin with retaining ring - cantilever pin with male thread - cantilever pin with articulated arm - cantilever pin with thrust washer - cantilever pin with thread

Application example: link with plain bearing bushing
(1) Cantilever shaft, (2) Retaining ring, (3) Links, (4) Plain bearing bushing, (5) Thrust washer

Industrial Applications

3D printer industry

Automotive industry

Pharmaceutical industry

Packaging industry

Katalog

Products homepage

Katalog (arkusz dwustronny)
